Description

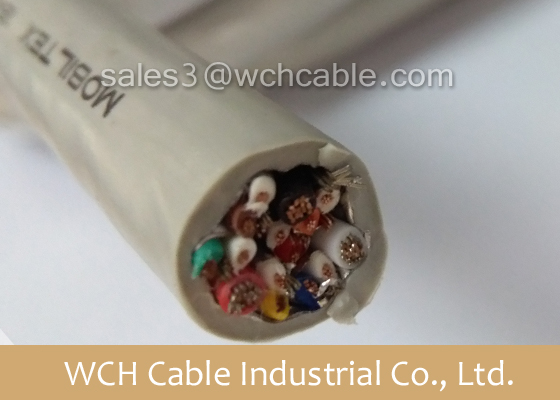

UL21238 Polyurethane PUR Cable
Product Structure
Conductor: Pure copper wire strands, optional as tinned or bare.
Insulation Wall thickness: As per AWM regulation.
Shield Coverage: Optional as 65% or none.
Jacket Wall Thickness: 0.33mm min.
Surface Marking: UL21238
Electrical Capability
Rated Temperature: 80°C
Rated Voltage: 600V
Dielectric Strength: 2000V (AC/min)
Spark Test: 3000V
Other Properties
Cold Resistance Dynamic: -20°C
Cold Resistance Static: -40°C
Flammability Grade: VW-1, FT1, FT2
Compliant Standard: AWM, UL758, UL1581.
Eco Friendly: RoHS, Reach compliant.
